700mm Pre Painted Steel Sheet

Name: 700mm Pre Painted Steel Sheet
Brand: Huaye
Price: 1 USD

Quality 700mm Pre Painted Steel Sheet wholesale

Place of Origin : China

Brand Name : Huaye

Certification : ISO14000

MOQ : 50

Packaging Details : standard export packing

Delivery Time : 45 days

Payment Terms : TT or LC

Supply Ability : 10000

Model Number : Steel Sheet

Commodity : Pre-painted Steel Sheet

Zinc coating : 40 g/m2 to 275 g/m2

Top surface : 15 - 20 micron polyester + 5 micron primer

Back surface : 5 - 7 micron, or 7-8 micron polyester + 5 micron primer.

Color : According to RAL Card or Clients' requests.

Coil Weight : max. 13 MT

Coil ID : 508mm/610mm

Contact Now

700 -1250mm Width, 0.18 -1.20mm Thickness Prepainted, Pre-painted Steel Sheet With LFQ

Quick Details:

As per JIS G3312/94 CGCC, GB/T 12754, EN 10169 DX51D+Z, commercial quality or Lock forming quality (LFQ)

Zinc coating:40 g/m2 to 275 g/m2, Top surface : 15 - 20 micron polyester + 5 micron primer.
Back surface: 5 - 7 micron, or 7-8 micron polyester + 5 micron primer. Color: According to RAL Card or Clients' requests.

Coil Weight max. 13 MT, Coil ID:508mm/610mm.With or without protective film on the top side.

Categories of paint:polyester/silicon modified polyester (SMP)/PVDF.

Thickness: 0.18-1.20mm

Width: 700-1250mm

Minimum order: 50MT per size.

Product details:

Surface	Coated
Insurance	15-25 years
Sample	A4 Sized
Product Keywords	pgi/wood prepainted galvanized steel coil/color coated aluminum sheet

Specifications:

Product name	Standard JIS G3312,0.2-1.0mm Thickness Pre Painted Sheet Metal
Plate	hot dipped galvanized plate or galvalume steel plate
Thickness	0.12-1.0mm
Effective width	700-1250mm
Color	Customized
Coated	PE coated (can be customized)

Application:

1. Construction:roof for steel structure workshop,airport,storeroom

2. Shipbuilding industry

3. Vehicle manufacturing

4. Furniture industry

5. Electric industry etc.

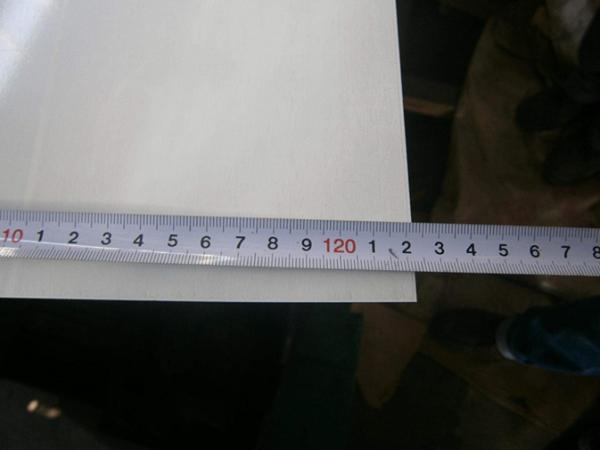

Package Picture:

700mm Pre Painted Steel Sheet
